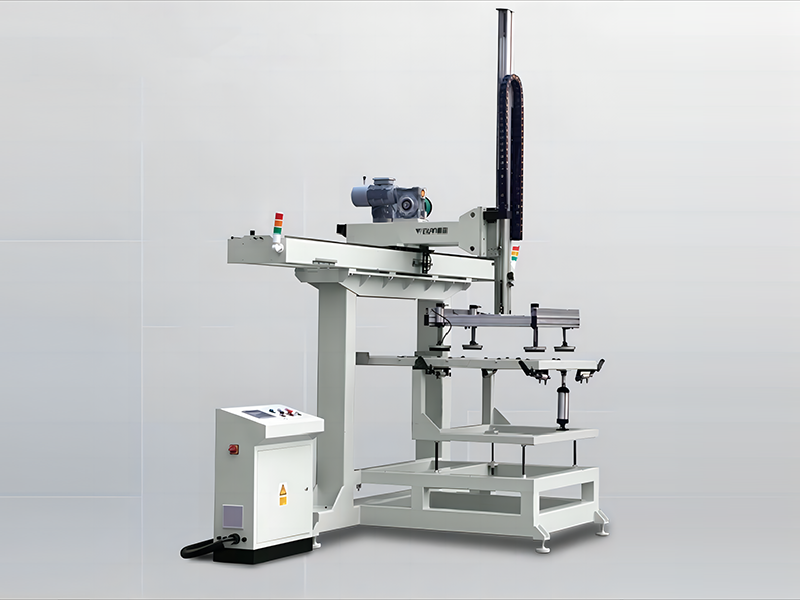

Medium-sized Wood Board Loading Machine

Model: S-1200

Application:

Wooden board, medium-sized

Vacuum suction cup, two workstation

Cutting line, usually fixed with moulded board multi saw machine MJ-1300

Size of board: 1240*1240mm

Feature:

Designed for multi saw machine (model), one cylinder raises up at the beginning of conveyor to create a slope angle to easy the board feeding process.

Cost-effective

Parameter:

Overall size: 4000*2200*4100mm

Total power: 3.5KW

Air pressure: 0.5-0.8MP

Voltage: 380V

Efficiency: 5-6 sheets/minute
