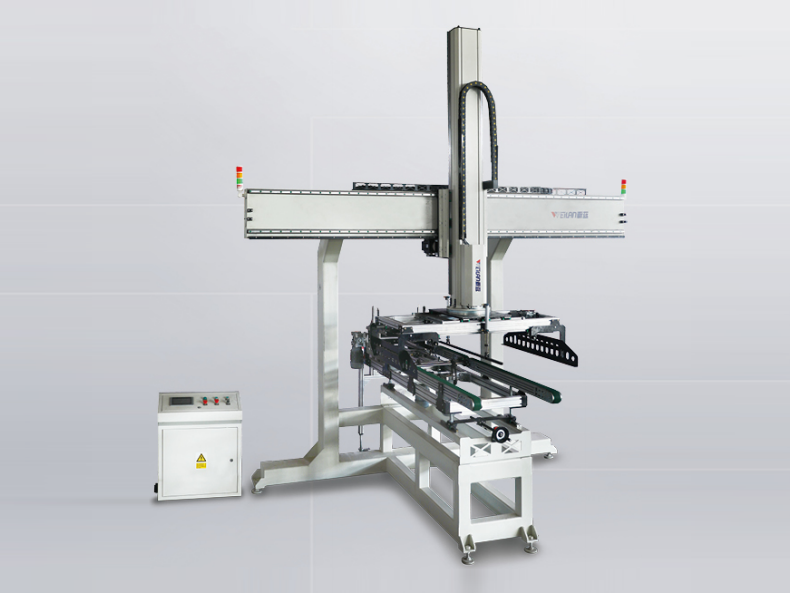

Model: ZS-1200
Application:
Wooden plank
Clamp gripper, loading multi-pile of planks in one time, two workstation, Grooving line,coating line,packaging line
Pallet pattern of loading from which to pickup planks must be cross-patterned
Size of plank: length: 810-1240mm
Feature:
High efficiency, picking multiple layers of planks up gripper, equipped with flipping device to do the plank loading and flipping in one machine
Servo motor to ensure precision
Pre-setting formulas on the PLC system, easy to operate
Open structure, double workstation to easy the forklift’s operation
Space saving
Parameter:
Overall size: 4000*2200*4100mm
Total power: 8KW
Air pressure: 0.5-0.8MP
Voltage: 380V
Efficiency: 2 full layers/minute
